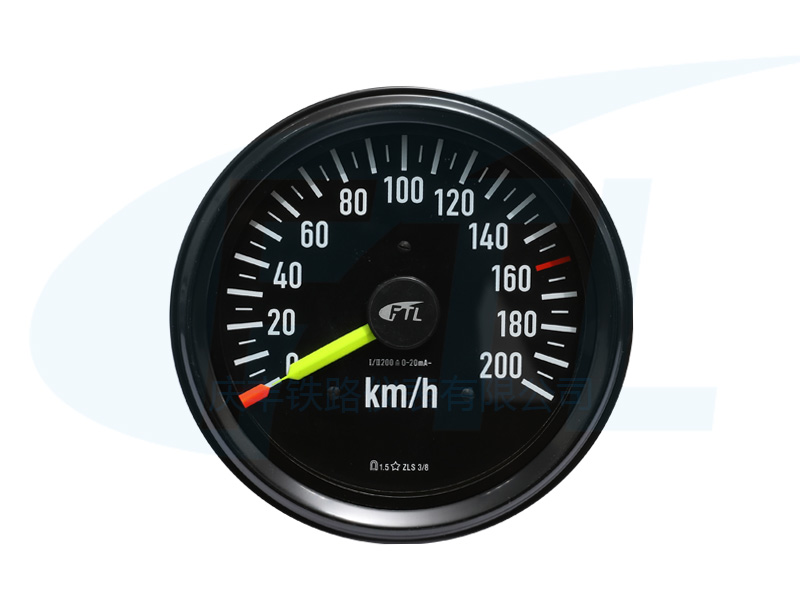

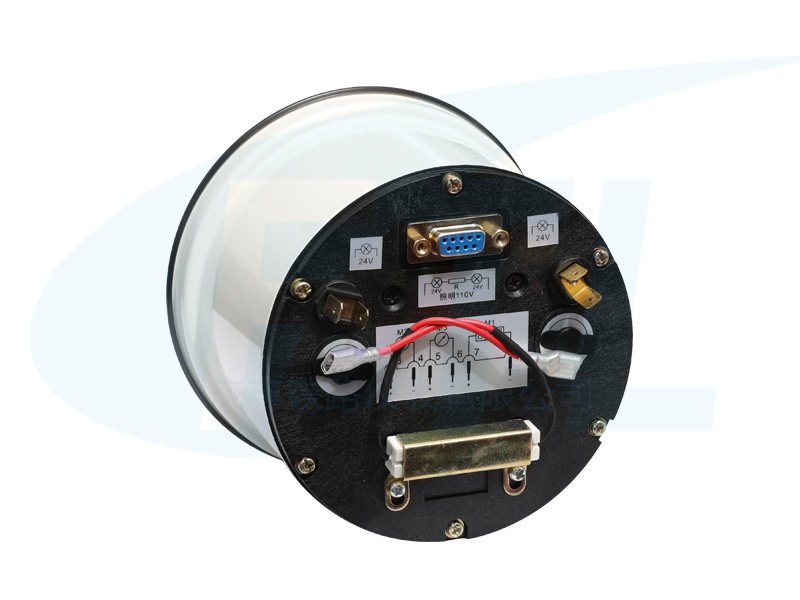

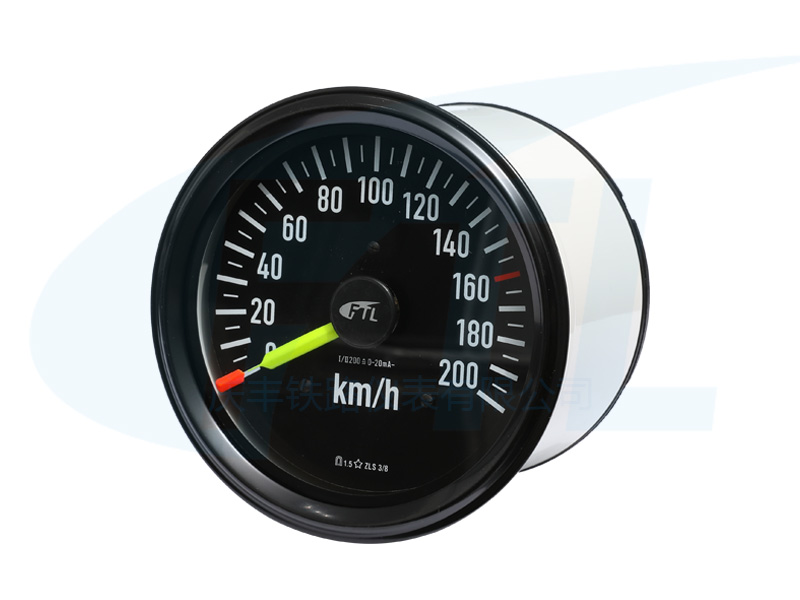

ZLS3/8 series double needle speedometer -200km
ZLS3/8 series double needle speedometer is a wide Angle instrument produced by Zhoushan Qingfeng Railway Instrument Co., LTD. The ZLS3/8 is a two-needle gauge odometer. The watch is composed of movement, odometer and housing, which has the characteristics of solid structure, good shock resistance, long life, etc., and is widely used in various locomotives/bullet trains in China.
Product Details
Technical parameters:
| Accuracy | 1.5% |
| Head rating | 0 ~ 20mA or customized according to customer needs |
| Mounting dimensions | Φ131mm+0.5 |
| Interior lighting | DC24V/DC110V |
| Vibration resistance | 1g,100HZ (DIN 89011) |
| Operating temperature | -25℃ ~ +70℃ |
| Mileage accumulation | 7-bit counter |
Note: The range of instructions can be customized according to customer needs.
